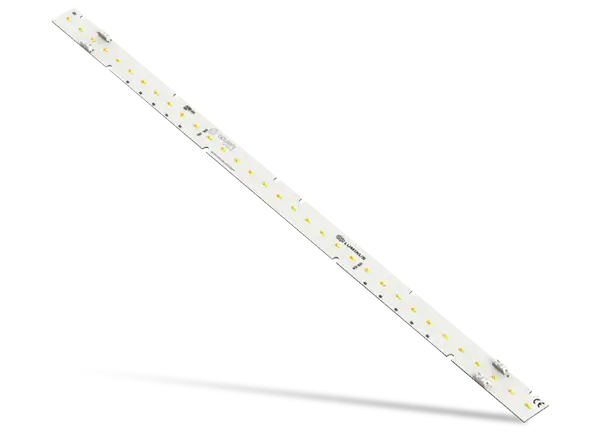

Linear Modules

MADE offers a set of Linear LED modules that fit many general lighting applications. These modules are designed for high efficacy, high light uniformity, high color rendering and long life using high quality LEDs.

Performance Series
560 (mm)
2ft High Lumen Dual Row
156 (#LED)
80 (CRI)
  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K
  • 11029 lm
  • 11512 lm
  • 11824 lm
  • 12183 lm
  • 12183 lm
560 (mm)
2ft High Lumen Dual Row
156 (#LED)
90 (CRI)
  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K
  • 9250 lm
  • 9687 lm
  • 10015 lm
  • 10296 lm
  • 10296 lm
560 (mm)
2ft High Lumen Density
90 (#LED)
80 (CRI)
  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K
  • 6002 lm
  • 6236 lm
  • 6444 lm
  • 6624 lm
  • 6624 lm
560 (mm)
2ft High Lumen Density
90 (#LED)
90 (CRI)
  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K
  • 5102 lm
  • 5328 lm
  • 5508 lm
  • 5696 lm
  • 5696 lm
560 (mm)
2ft High LPW
42 (#LED)
80 (CRI)
  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K
  • 1968 lm
  • 2004 lm
  • 2112 lm
  • 2174 lm
  • 2174 lm
560 (mm)
2ft High LPW
42 (#LED)
90 (CRI)
  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K
  • 1670 lm
  • 1746 lm
  • 1810 lm
  • 1868 lm
  • 1868 lm
280 (mm)
1ft High Lumen Density
45 (#LED)
80 (CRI)
  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K
  • 3001 lm
  • 3118 lm
  • 3222 lm
  • 3312 lm
  • 3312 lm
280 (mm)
1ft High Lumen Density
45 (#LED)
90 (CRI)
  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K
  • 2551 lm
  • 2664 lm
  • 2754 lm
  • 2848 lm
  • 2848 lm
280 (mm)
1ft High LPW
21 (#LED)
80 (CRI)
  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K
  • 984 lm
  • 1022 lm
  • 1056 lm
  • 1087 lm
  • 1087 lm
280 (mm)
1ft High LPW
21 (#LED)
90 (CRI)
  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K
  • 835 lm
  • 873 lm
  • 905 lm
  • 934 lm
  • 934 lm
Value Series
1120 (mm)
4ft LED Module
112 (#LED)
80 (CRI)
  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K
  • 7918 lm
  • 8265 lm
  • 8489 lm
  • 8747 lm
  • 8747 lm
1120 (mm)
4ft LED Module
112 (#LED)
90 (CRI)
  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K
  • 6641 lm
  • 6955 lm
  • 7190 lm
  • 7392 lm
  • 7292 lm
1120 (mm)
4ft LED Module
56 (#LED)
80 (CRI)
  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K
  • 3959 lm
  • 4132 lm
  • 4244 lm
  • 4373 lm
  • 4373 lm
1120 (mm)
4ft LED Module
56 (#LED)
90 (CRI)
  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K
  • 3320 lm
  • 3477 lm
  • 3595 lm
  • 3696 lm
  • 3696 lm
560 (mm)
2ft LED Module
56 (#LED)
80 (CRI)
  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K
  • 3959 lm
  • 4132 lm
  • 4244 lm
  • 4373 lm
  • 4373 lm
560 (mm)
2ft LED Module
56 (#LED)
90 (CRI)
  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K
  • 3320 lm
  • 3477 lm
  • 3595 lm
  • 3696 lm
  • 3696 lm
560 (mm)
2ft LED Module
28 (#LED)
80 (CRI)
  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K
  • 1979 lm
  • 2066 lm
  • 2112 lm
  • 2186 lm
  • 2186 lm
560 (mm)
2ft LED Module
28 (#LED)
90 (CRI)
  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K
  • 1660 lm
  • 1738 lm
  • 1797 lm
  • 1848 lm
  • 1848 lm
280 (mm)
1ft LED Module
28 (#LED)
80 (CRI)
  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K
  • 1979 lm
  • 2066 lm
  • 2122 lm
  • 2186 lm
  • 2186 lm
280 (mm)
1ft LED Module
28 (#LED)
90 (CRI)
  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K
  • 1660 lm
  • 1738 lm
  • 1797 lm
  • 1848 lm
  • 1848 lm
280 (mm)
1ft LED Module
14 (#LED)
80 (CRI)
  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K
  • 989 lm
  • 1033 lm
  • 1061 lm
  • 1093 lm
  • 1093 lm
280 (mm)
1ft LED Module
14 (#LED)
90 (CRI)
  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K
  • 830 lm
  • 869 lm
  • 898 lm
  • 924 lm
  • 924 lm
ULT Direct Series
559 (mm)
M700C8xxD72N2S
72 (#LED)
80 (CRI)
  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K
  • 5443 lm
  • 5522 lm
  • 5601 lm
  • 5760 lm
  • 5911 lm
559 (mm)
M700C9xxD72N2S
72 (#LED)
90 (CRI)
  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K
  • 4204 lm
  • 4276 lm
  • 4356 lm
  • 4514 lm
  • 4665 lm
559 (mm)
M10CC8xxD96N2S
96 (#LED)
80 (CRI)
  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K
  • 7257 lm
  • 7363 lm
  • 7468 lm
  • 7680 lm
  • 7881 lm
559 (mm)
M10CC9xxD96N2S
96 (#LED)
90 (CRI)
  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K
  • 5606 lm
  • 5702 lm
  • 5808 lm
  • 6019 lm
  • 6220 lm
559 (mm)
M14CC8xxD112N2W
112 (#LED)
80 (CRI)
  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K
  • 8635 lm
  • 8635 lm
  • 9128 lm
  • 9128 lm
  • 9128 lm
559 (mm)
M14CC9xxD112N2W
112 (#LED)
90 (CRI)
  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K
  • 7156 lm
  • 7156 lm
  • 7649 lm
  • 7649 lm
  • 7649 lm
560 (mm)
M18CC8xxD156N2S
156 (#LED)
80 (CRI)
  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K
  • 11793 lm
  • 11965 lm
  • 12136 lm
  • 12480 lm
  • 12807 lm
560 (mm)
M18CC9xxD156N2S
156 (#LED)
90 (CRI)
  • 2700K
  • 3000K
  • 3500K
  • 4000K
  • 5000K
  • 9110 lm
  • 9266 lm
  • 9438 lm
  • 9781 lm
  • 10108 lm
LED MODULE   DESIGN
High LED Density

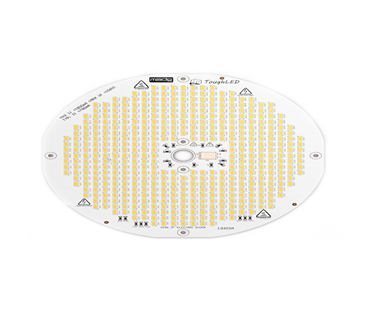

Round LED module with high number of LEDs
Thin Ring
LEDs placed along the circular path of the ring module
Radial Ring
Uniform radial LED placement along a wide ring module

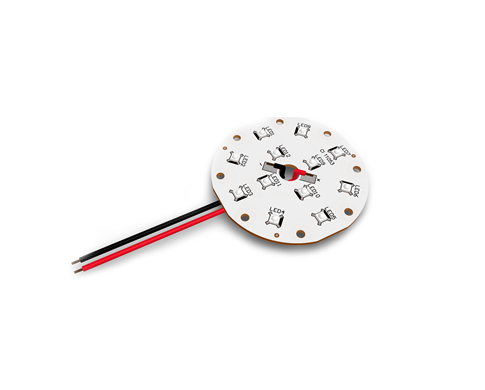

Round with Leads
Soldered wire leads to standard round module
Single High Power
Single high power LED with added thermal interface material
Dual Channel
Dual channel color tuning module with independent channel connectors
Color Tuning Module
Standard interlaced dual channel color tuning with independent connectors
High LED Count
Linear module with small package LED and very high LED count
Arched Linear
Arched linear module with a length greater than 48 in.
Dual Row Linear
Standard linear module with dial row of LEDs
High Power w/ Driver
Rectangular module with high power LEDs and multiple integrated drivers
Standard Rectangular
Standard rectangular LED module with connectors on dual sides
Rectangular w/ Lens
Small rectangular single LED module with attached lens
Irregular Shapped
High density LED module with irregular shape
Large Pie Shape
Rectangular pie shaped module with large LED count
Integrated Technology
USB powered and controlled single high power LED with USB dimming control
High Thermal Density
High power LEDs with thermal pad connected to the PCB substrate
RGB Linear Module
RGB color module with independent color channels and integrated drivers
Power Control
LED driver output power control encased with leads
24V CC Driver
24V constant current 500/350 mA LED driver with leads and connector

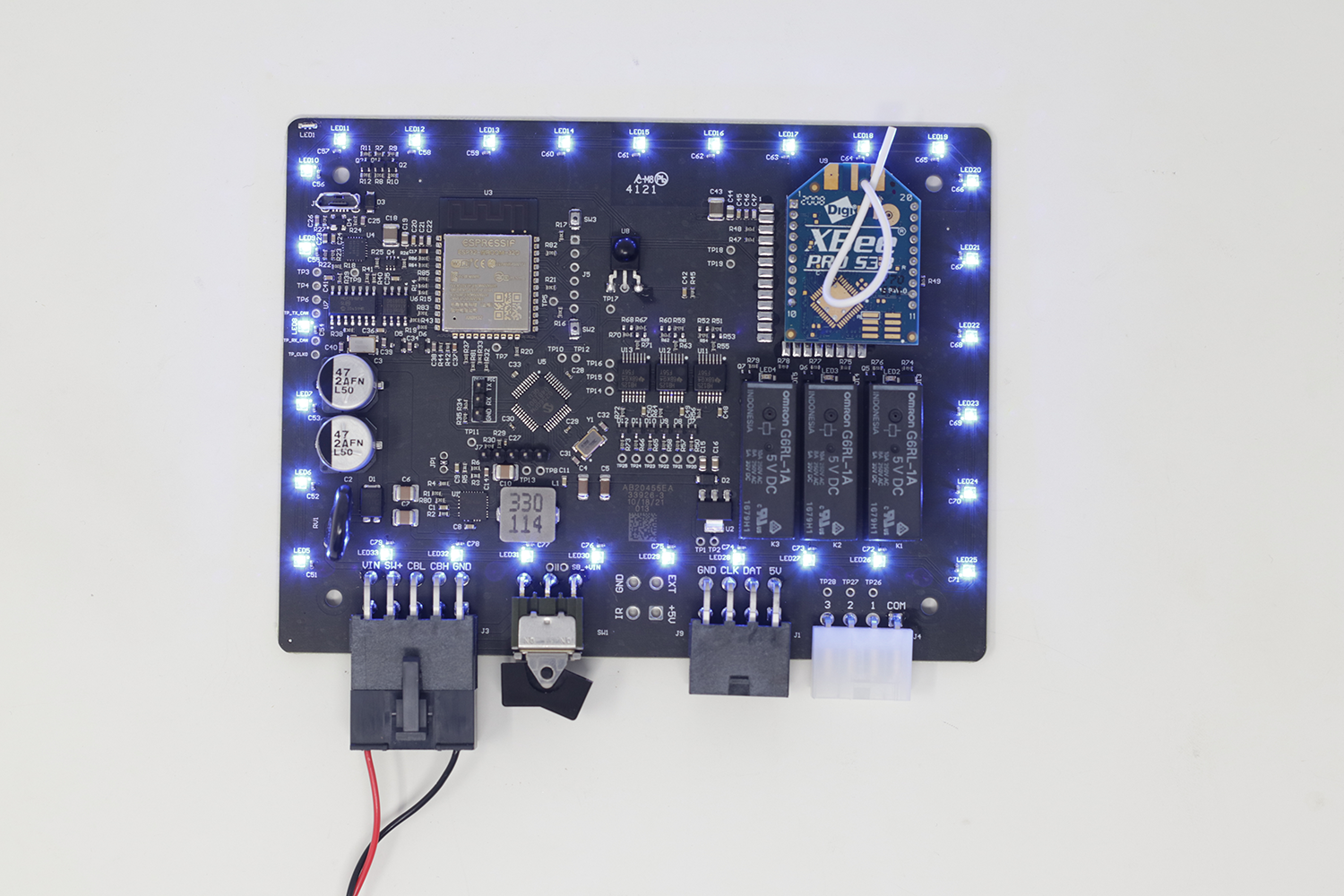

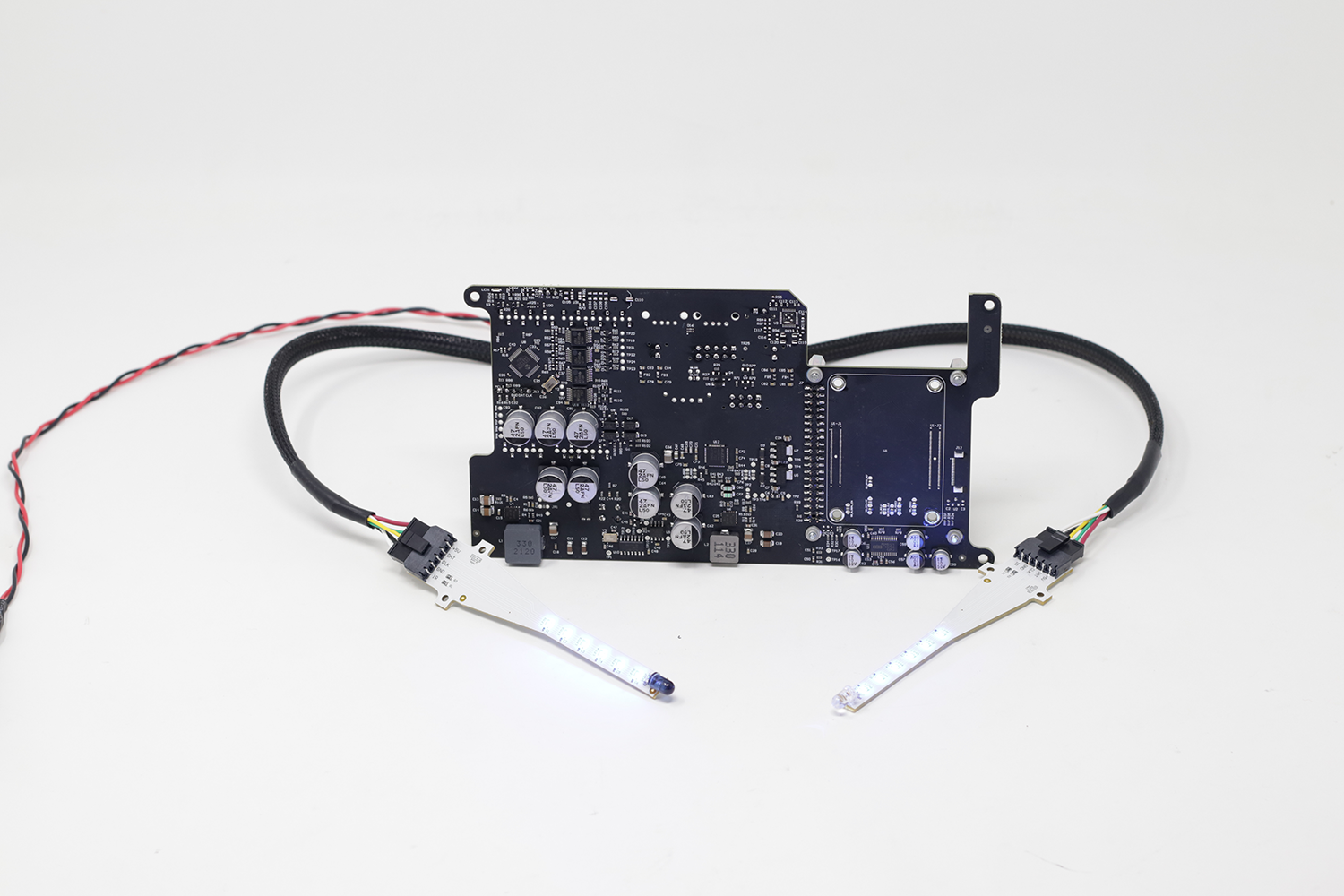

RGB HUD System
Digitally Addressable LED animation lighting
RGB Control System
Digitally Addressable LED animation lighting
AUTOMOTIVE   LIGHTING
Automotive LED Modules

Designed for the connected vehicle

Designing for the harsh environment of the automobile requires additional skills to navigate the price performance curve.

The MADE Engineering Team possesses the industry knowledge to create designs up to automotive standards

Lighting Animation

Synchronized complex lighting animations

Vehicle lighting animations using high power LEDs, low power LEDs, addressable LEDs, exterior lighting and interior lighting can be choreographed and synchronized across an entire vehicle.

Synchronization can also be linked to mechatronic functions and display screen images or videos.



Magna Mezzo Plus Lighting & Morphing animations →

Magna Liftgate Lighting animations →

Lincoln L100 lighting & mechatronics animations →
